SPECIFICATIONS

Battery Included: no

Brand Name: MOES

Certification: CE

Choice: yes

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Wattage: other

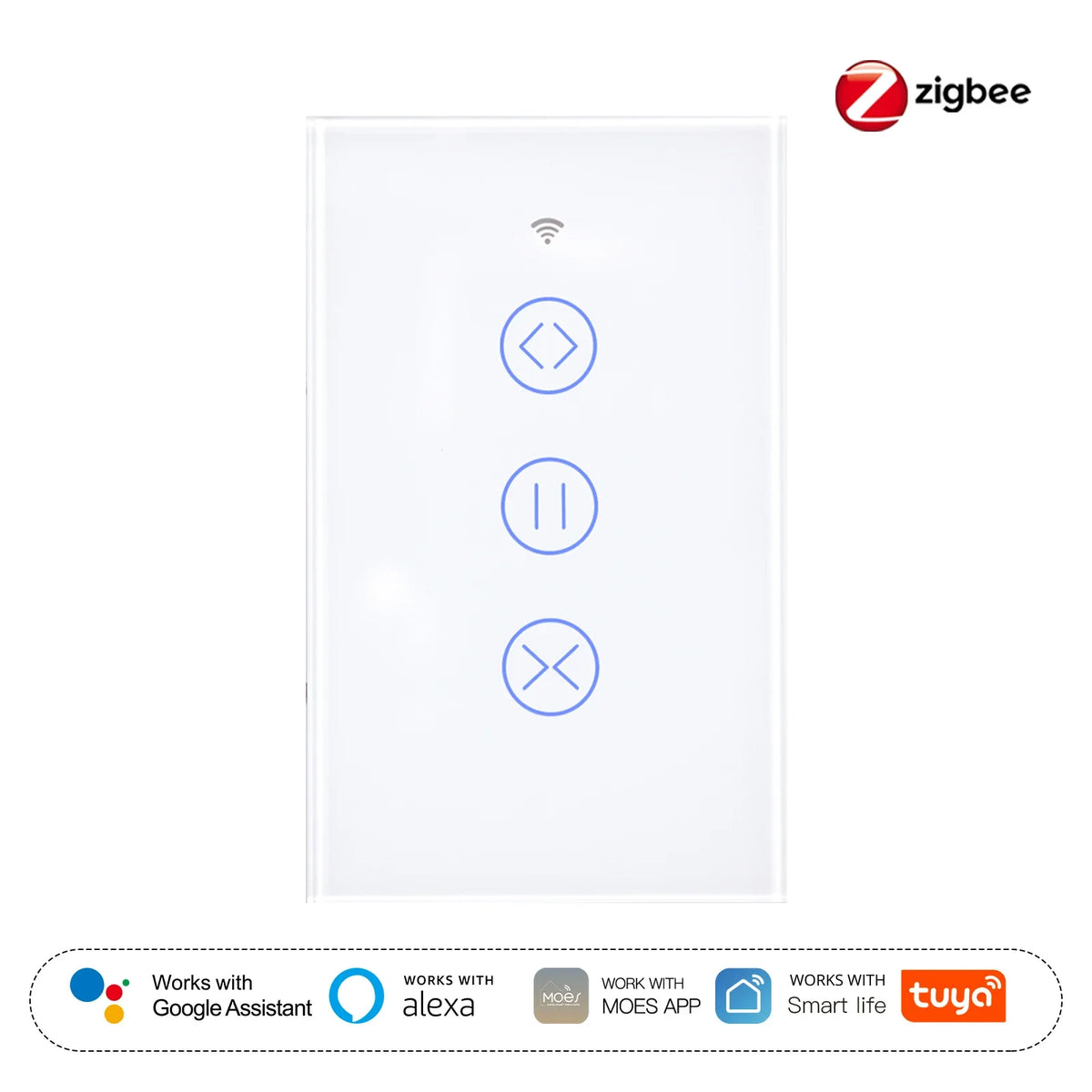

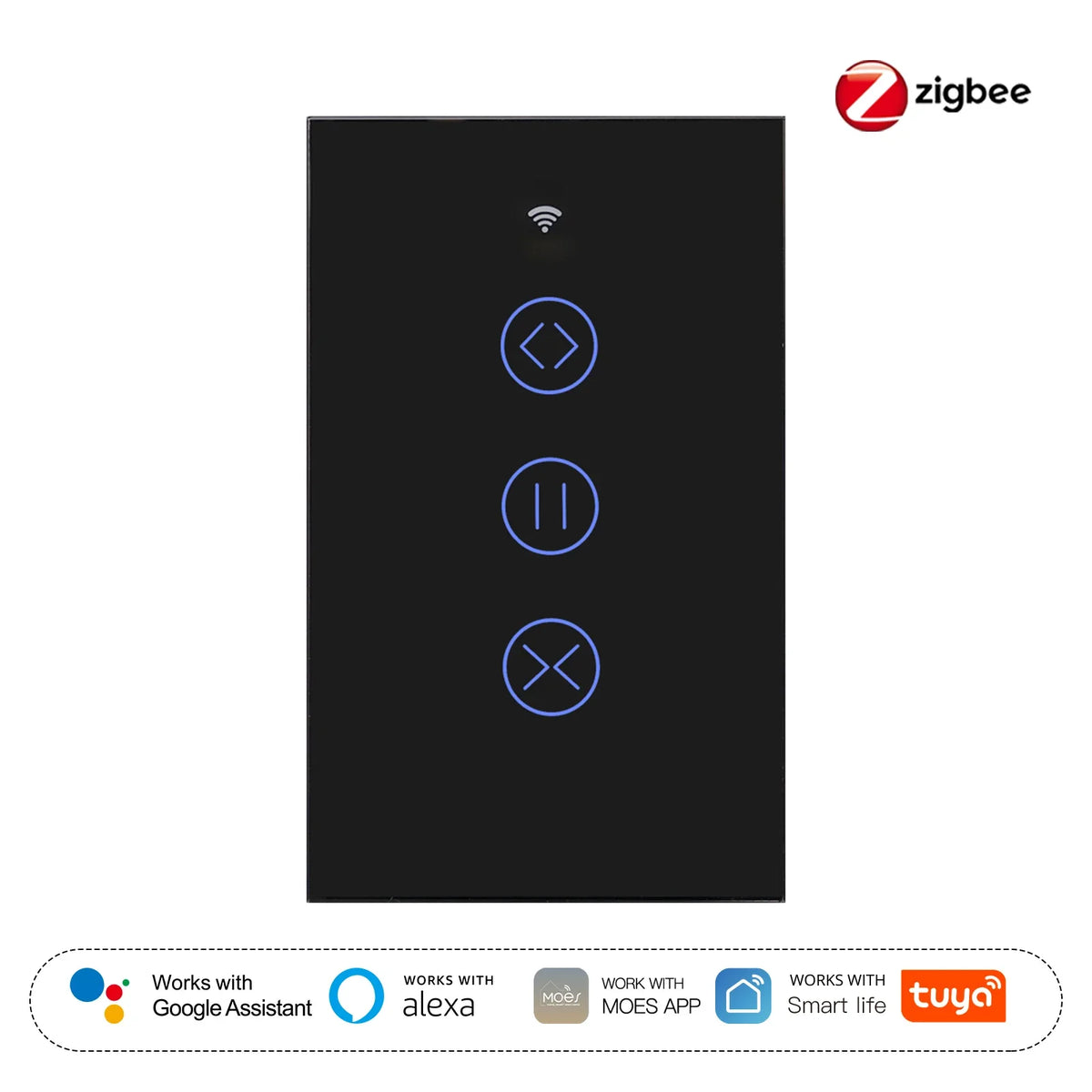

MOES Tuya ZigBee Smart Glass Touch Curtain Switch RF App Wireless Control Fireproof Neutral Wire Required With Alexa Google Home
By Moes

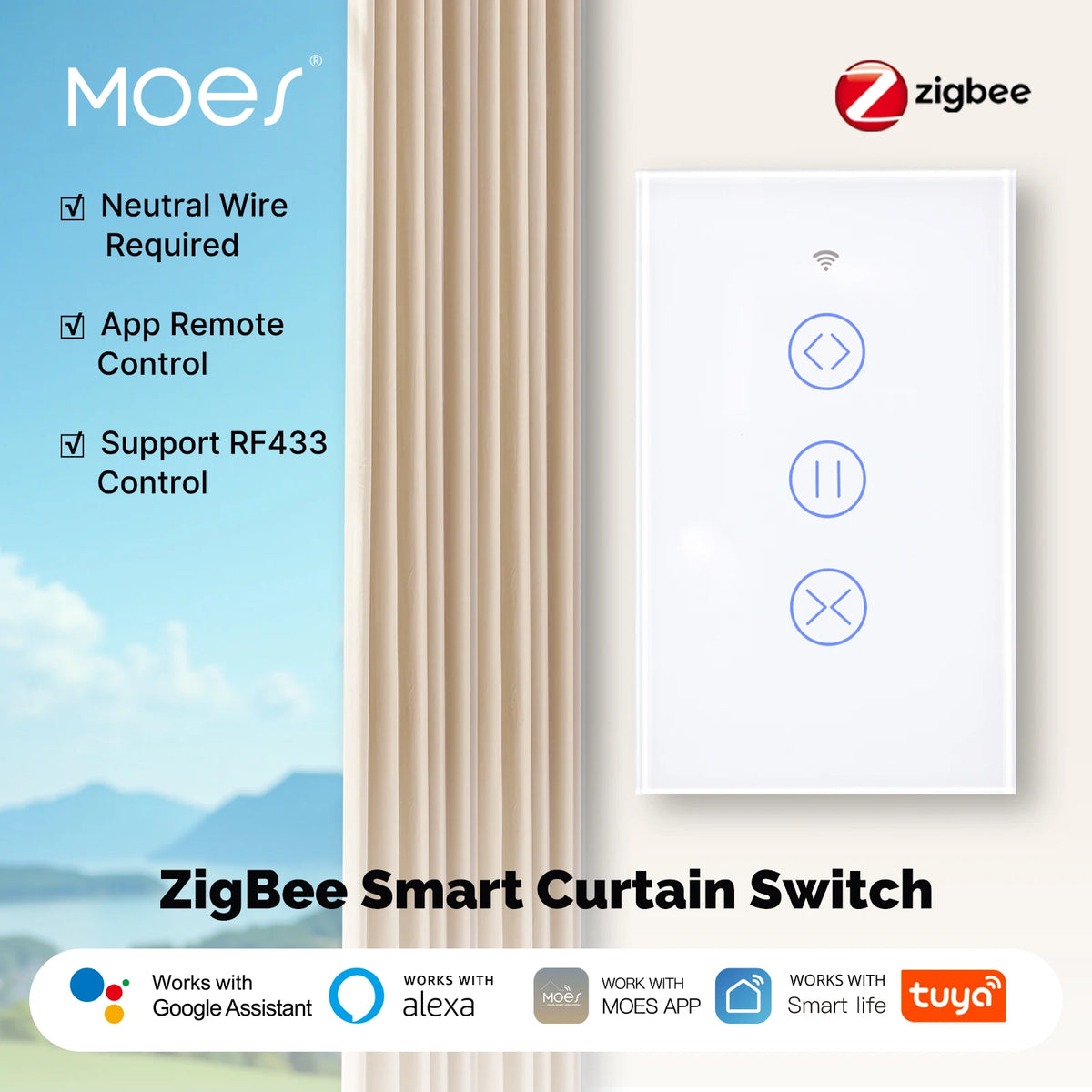

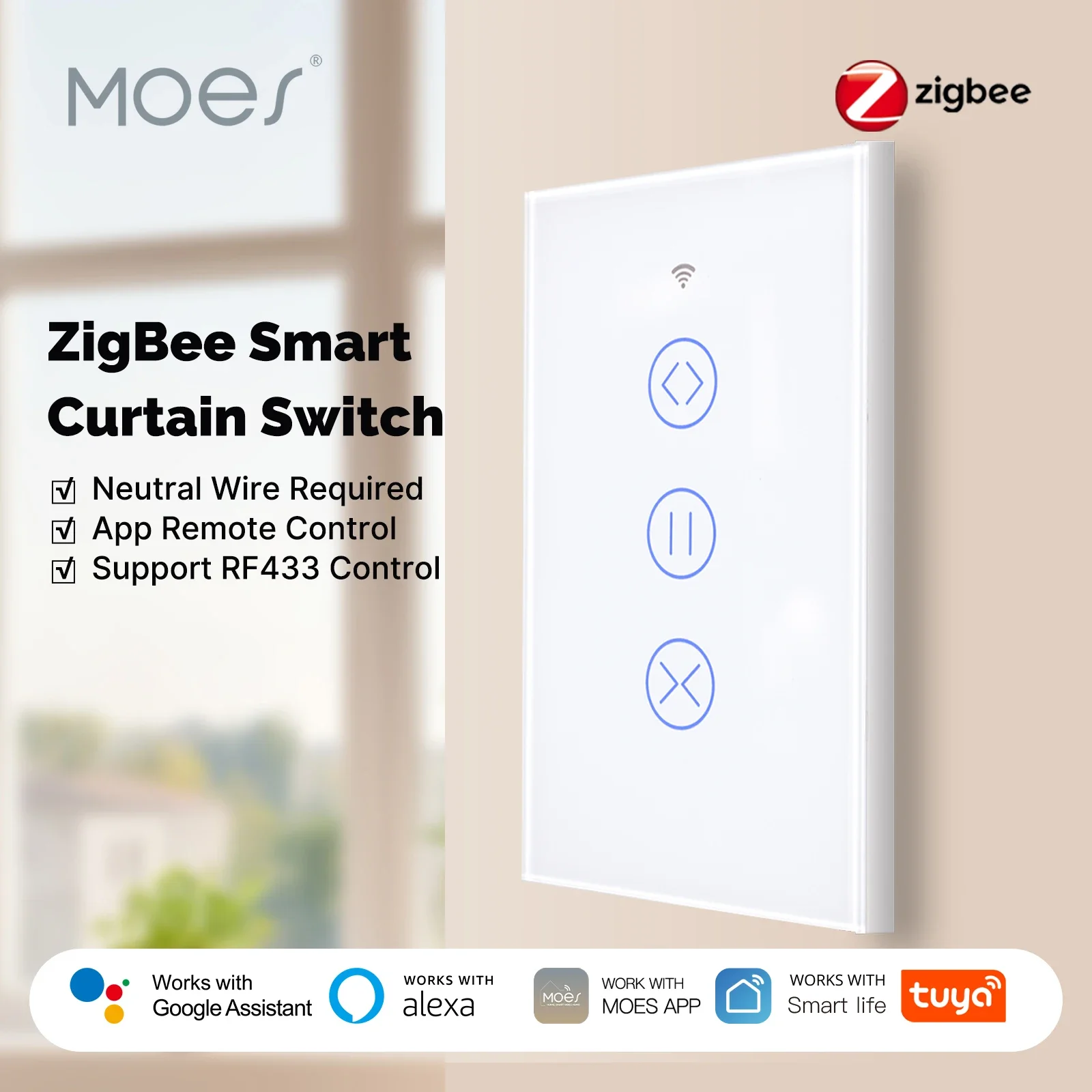

ZigBee Smart Curtain Switch

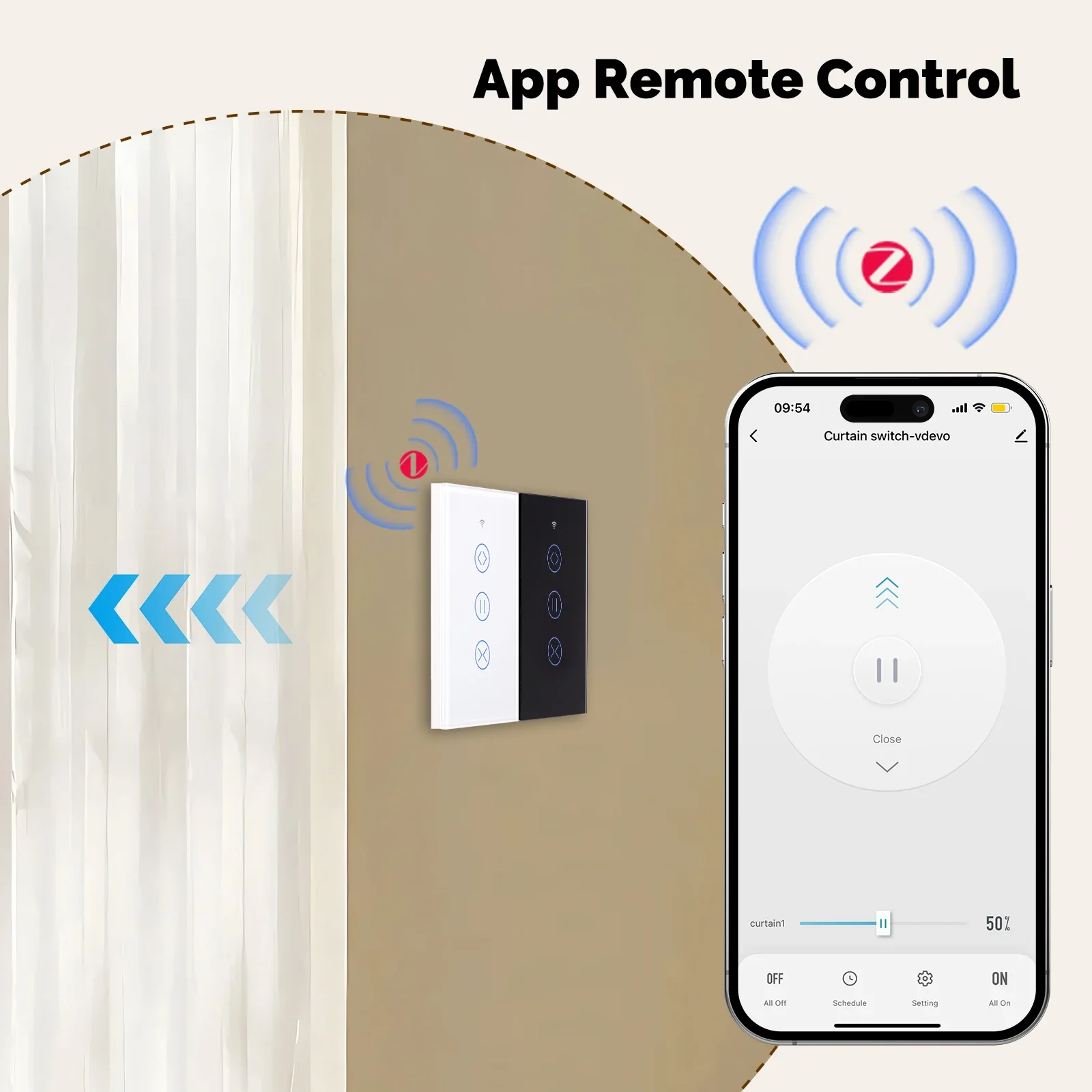

App Remote Control

RF433 Remote Control

Voice Control

Percentage Control

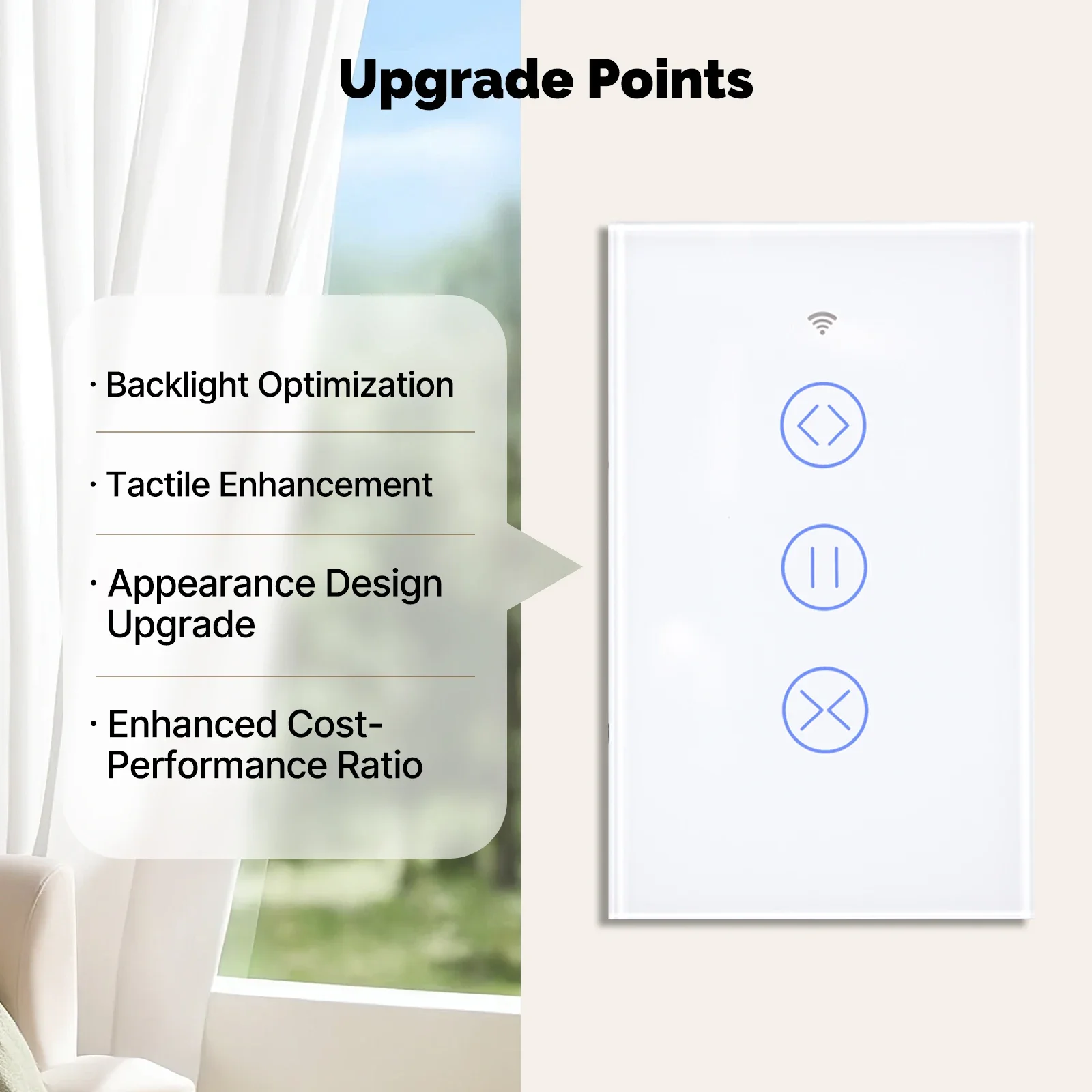

Upgrade Points

Smart Control Realized With Tuya Zigbee Gateway

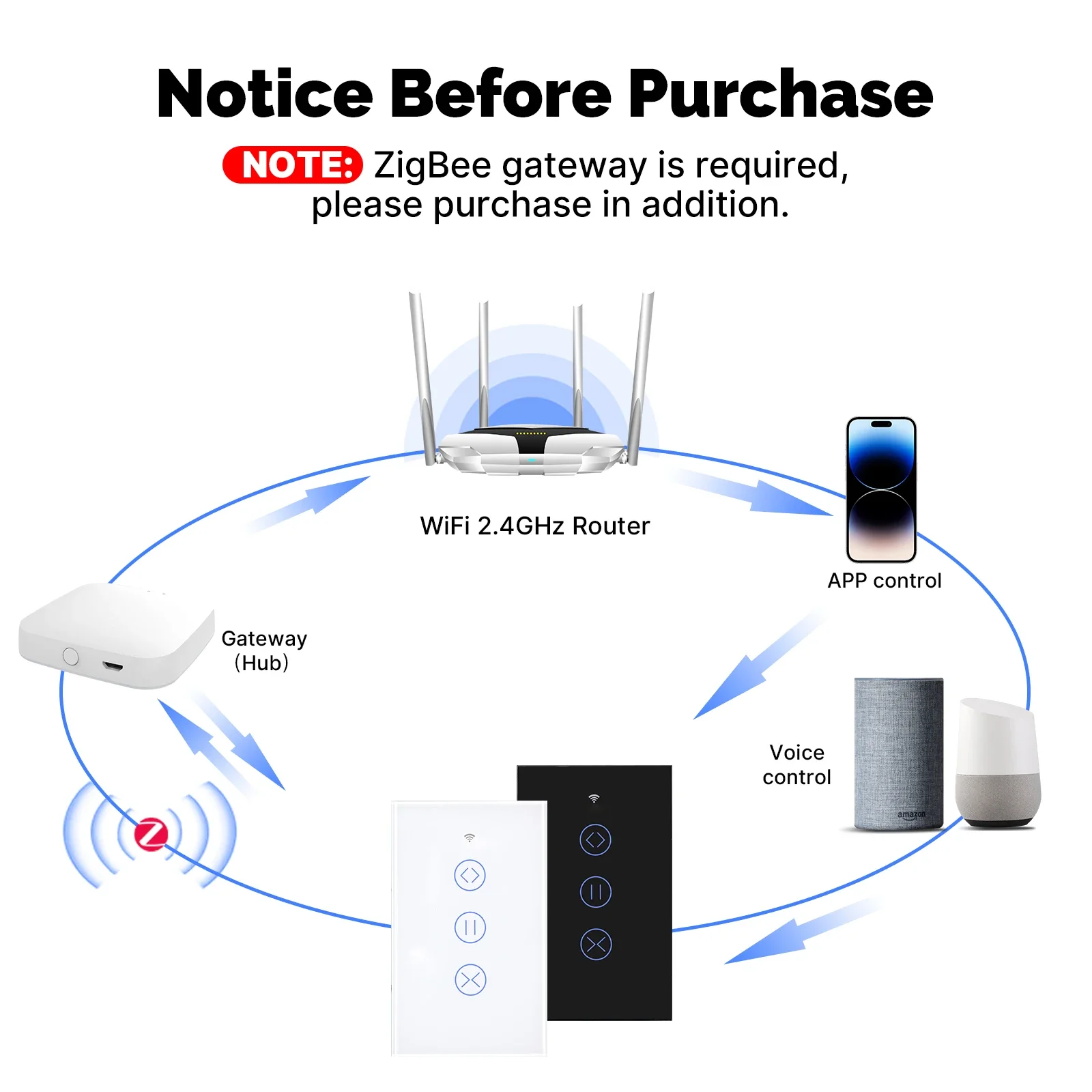

Notice before purchase: ZigBee gateway is required, please purchase in addition.

Smart Linkage: Create Your Own Smart Scene

As a smart switch supporting ZigBee protocol, it can link with your home smart devices under ZigBee, to create your own smart scene, realizing the best practicability.

Timing Function

Customize your own timing in the APP to fulfill your product usage scheduling needs.

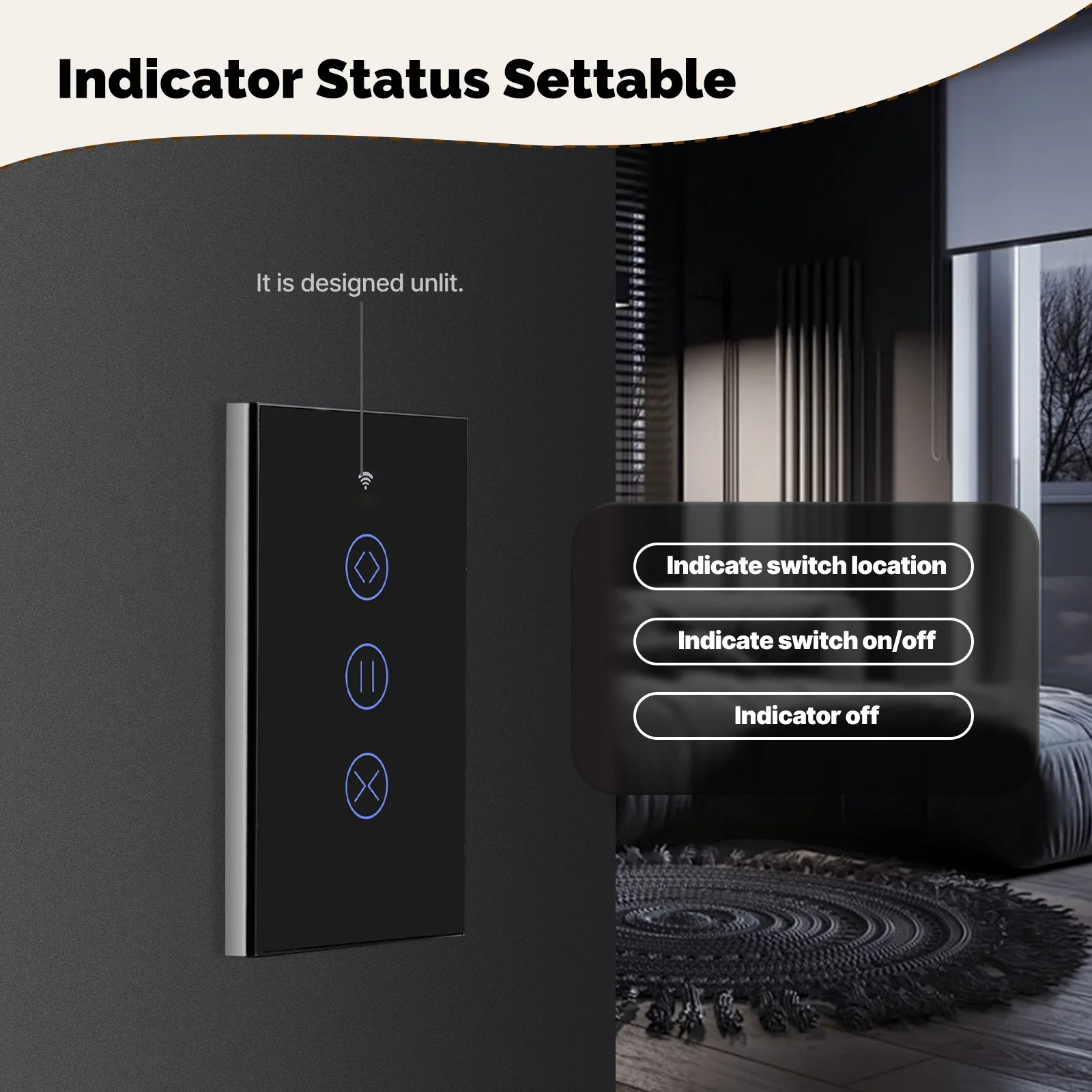

Indicator Status Settable

You can easily set the indicator light to indicate the switch position, display the on/off status or close it by MOES APP to meet your personalized needs.

Multiple-scenario Matching

The curtain switch can adapt to multiple types of curtains such as Roman curtain, open and close curtain and shutter curtain as you need in your house.

Backlight ON/OFF

Easily control the on and off of the button backlight through the APP, allowing you to operate clearly in dim environments and providing a more comfortable user experience.

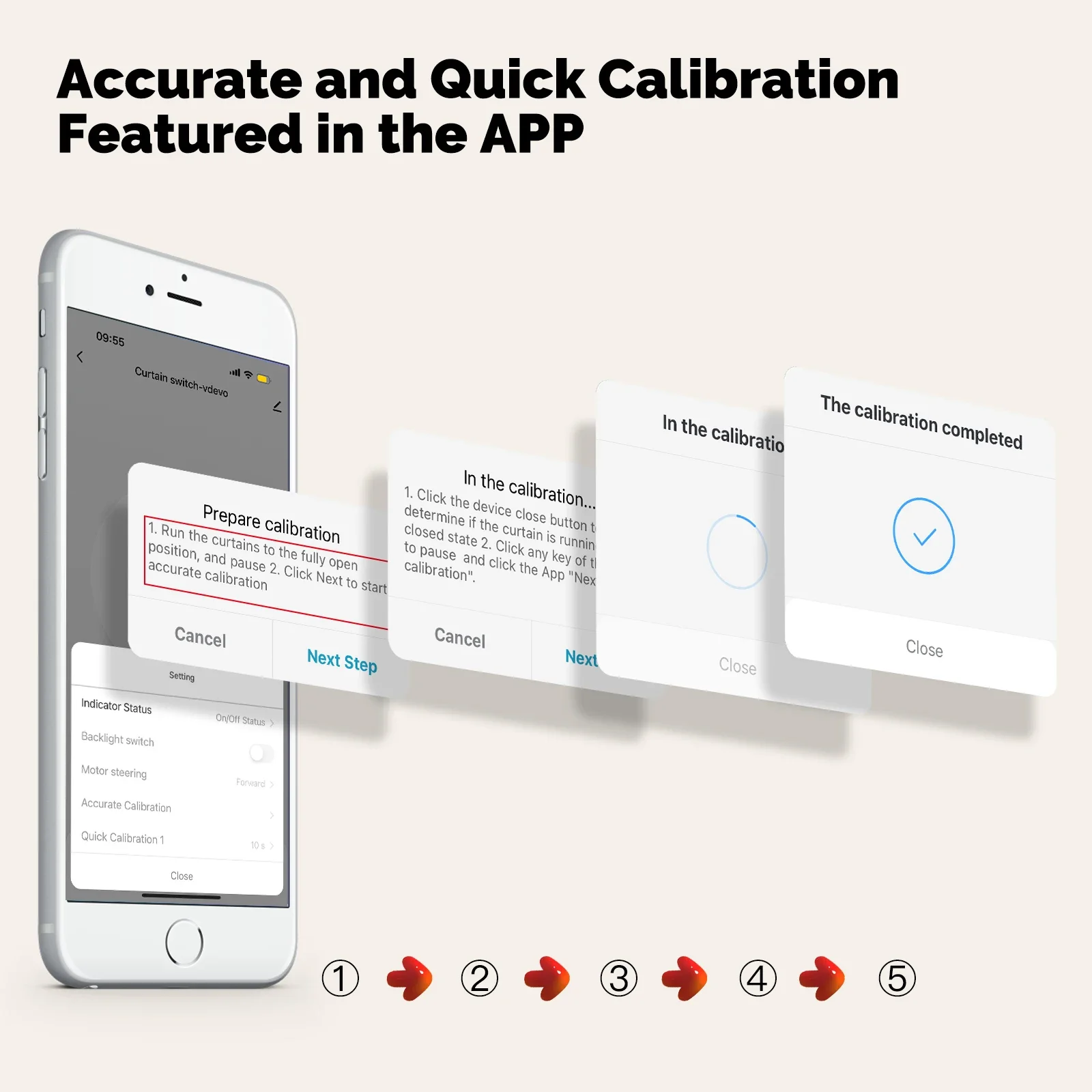

Accurate and Quick Calibration Featured in the APP

Please confirm you have completed the operations step by step for accurate calibration.

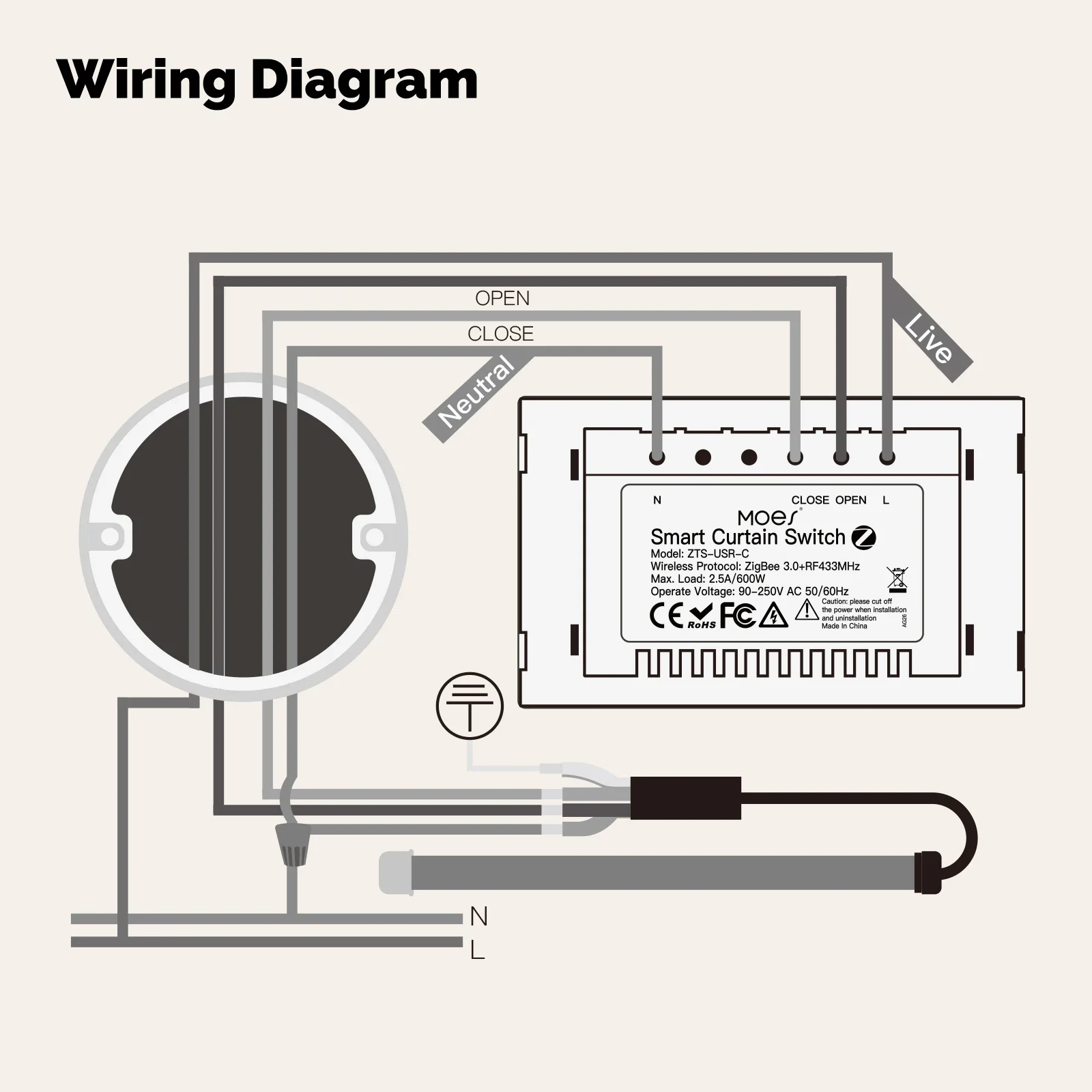

Wiring Diagram

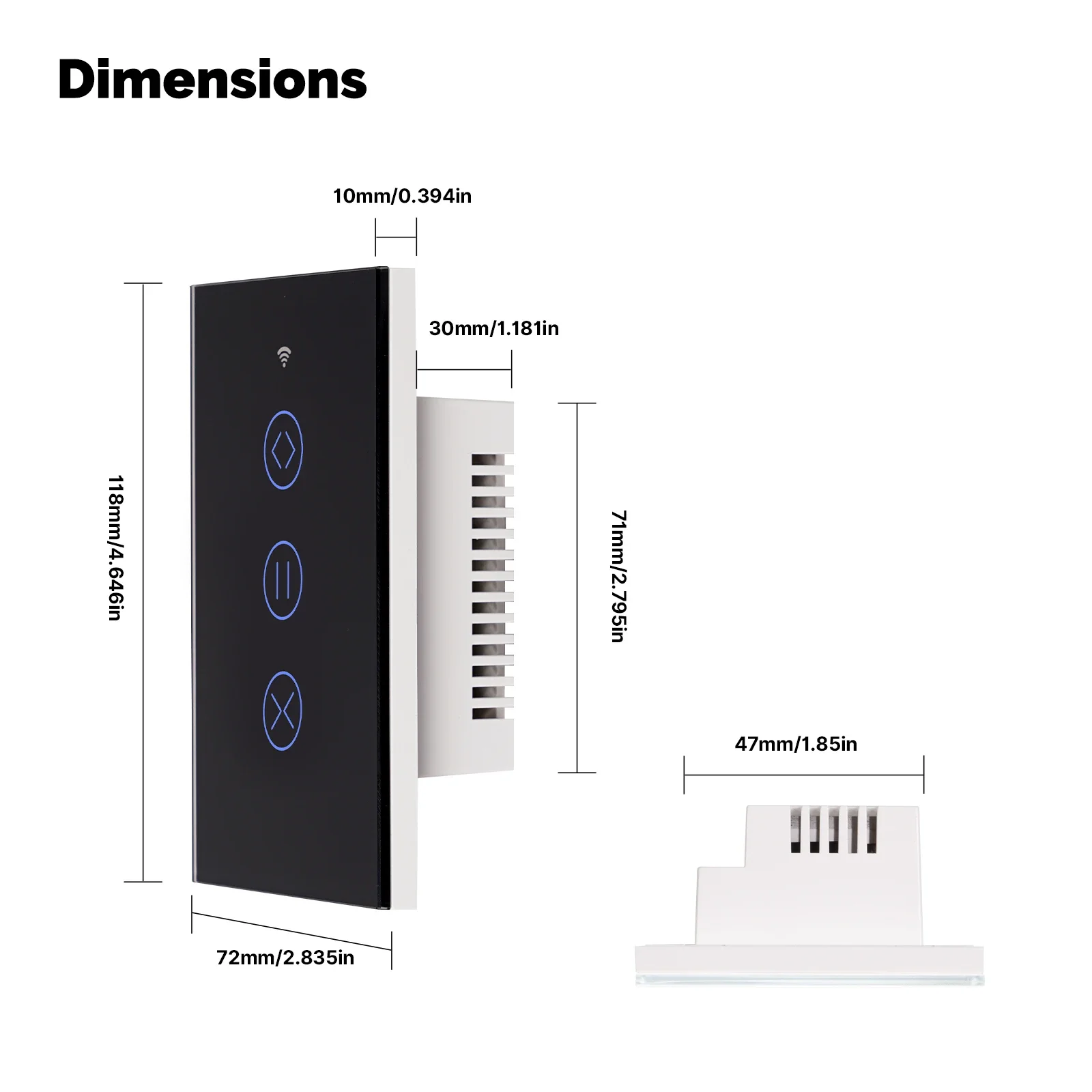

Dimensions

Technical Specifications:
Working Voltage:90-250V AC 50/60Hz
Current:2.5A
Load Power:≤600W
Standby Power:≤0.5W
Wireless Protocol:ZigBee 3.0+RF 433MHz
Standby Consumption:0.1 mA
Wireless Range:30 Meters(Indoor)
Frequency Band:2.400-2.483GHz
Maximum Radio Transmit Power:<+10dBm

Package List:
Smart Switch *1
User Manual *1
Screw bag *1
